Spectron

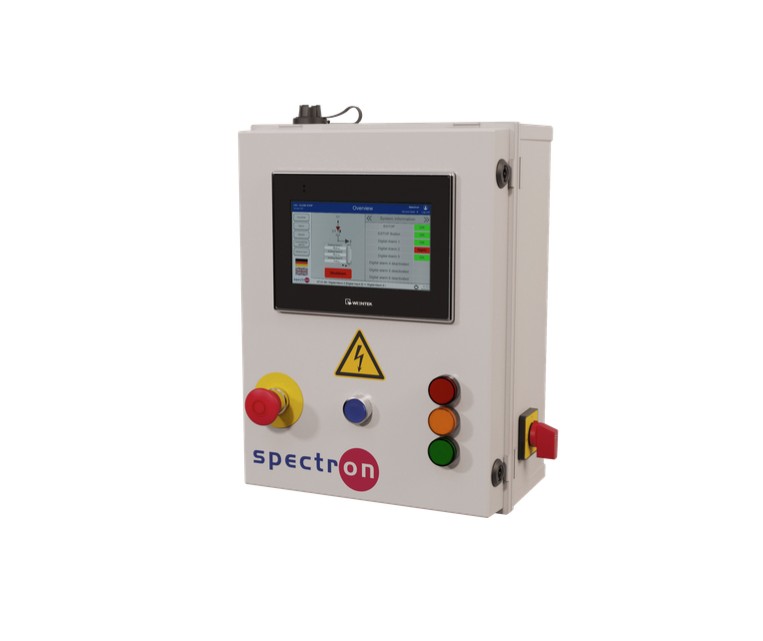

FS1 Alarm Control Unit
- Alarm and control unit for max. 6 digital inputs (e.g. contact pressure gauge or pressure switch), 8 analogue inputs (e.g. pressure transmitters or weighing scales) and one additional input for an external emergency shut off
- The unit may be configured for 1 programmable pneumatic valve (FS18P) or 1 relay output (FS18E)
- Touchscreen operation: all operation from ergonomically positioned Human Machine Interface
- Industrial PLC controls all inputs and outputs as well as analogue signal processing
- Monitoring and display of the gas contents by pressure or weight
- Relay output for the valve status
- Communication options: Ethernet and Modbus RTU
- Solenoid valves can be manually operated
- Daylight visible LED indicators
- Acoustic signals can be silenced
- Digital inputs to be configured for NO or NC contacts
- All parameters and signal configurations can be programmed with the touch panel at the front of the unit
- Plastic housing IP 65 for wall mounting
- Password protection for 2 superior levels of access
- Multiple Language Support: German / English
- According to Low Voltage Directive 2006/95/EC
